433Mhz DC 3.6V-24V 1CH Mini Relay Wireless RF Remote Control Switch LED Lamp Controller Micro-Receiver Transmitter

Wireless control LED lamp string, Christmas tree light string, light control switch.
Long range working voltage.
Ultra low power,High sensitive response.
Note:The products in our store all work in 433Mhz.We can not make sure that different frequency product can connect with each other.
Technical Data Of Transmitter:
Operating frequency: 433MHz
Power by 2 Pcs 3V CR2016 Battery (Battery included )
Button: 2 buttons
Size: 60mm x 30mm
Operating voltage: 3V
Operating Current: 12mA
Transmitting power: 10mw
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 20~50m

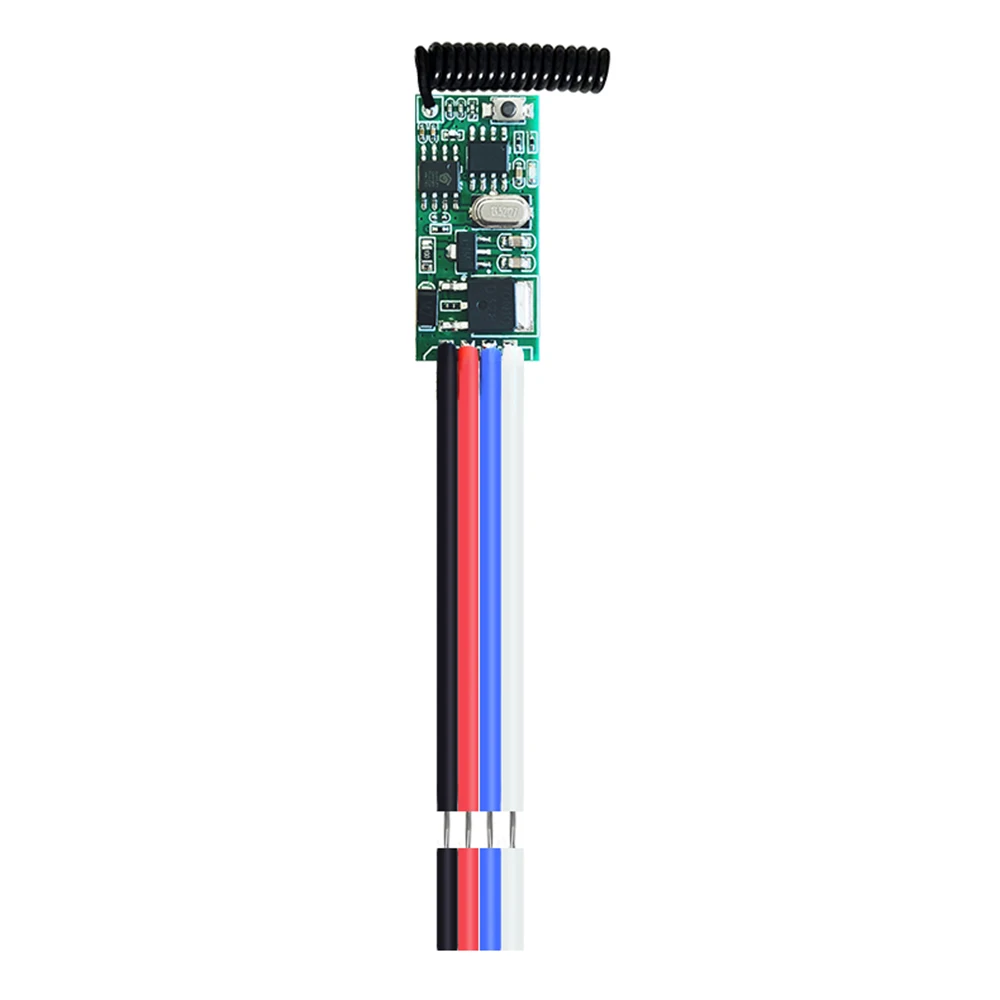

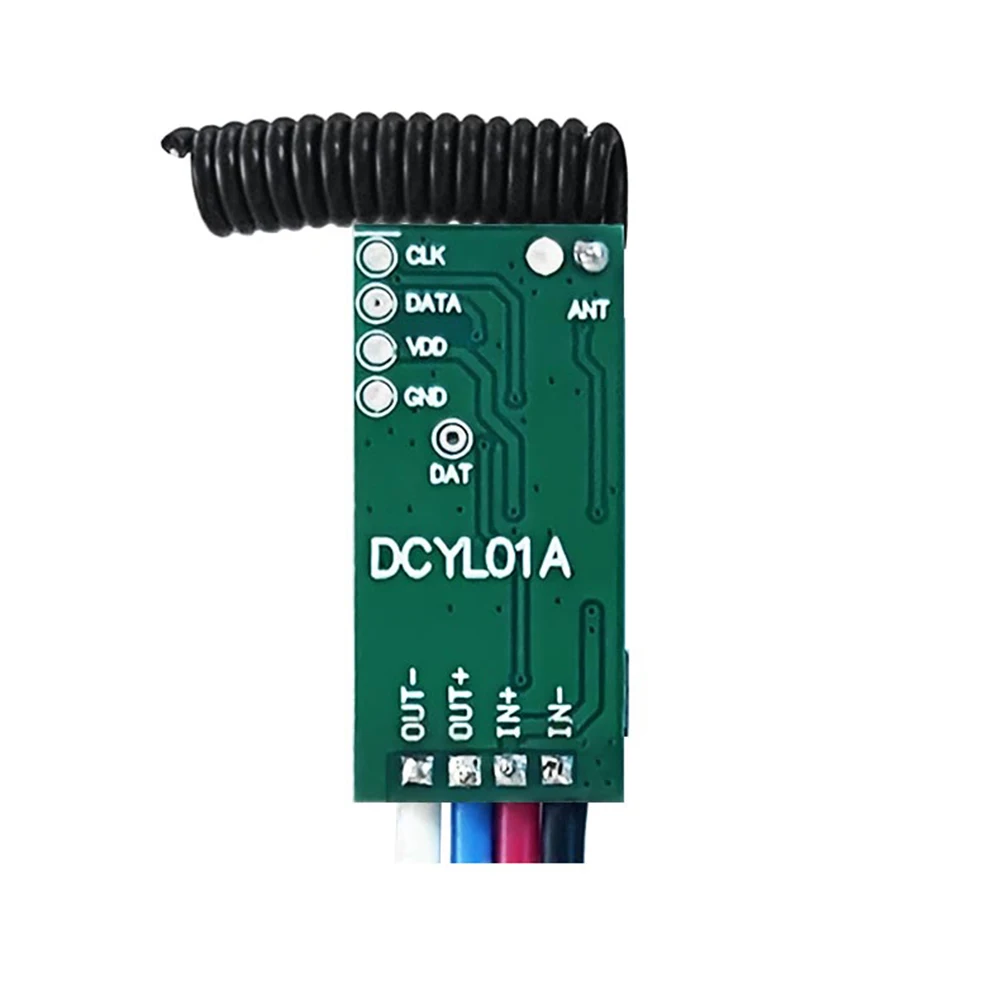

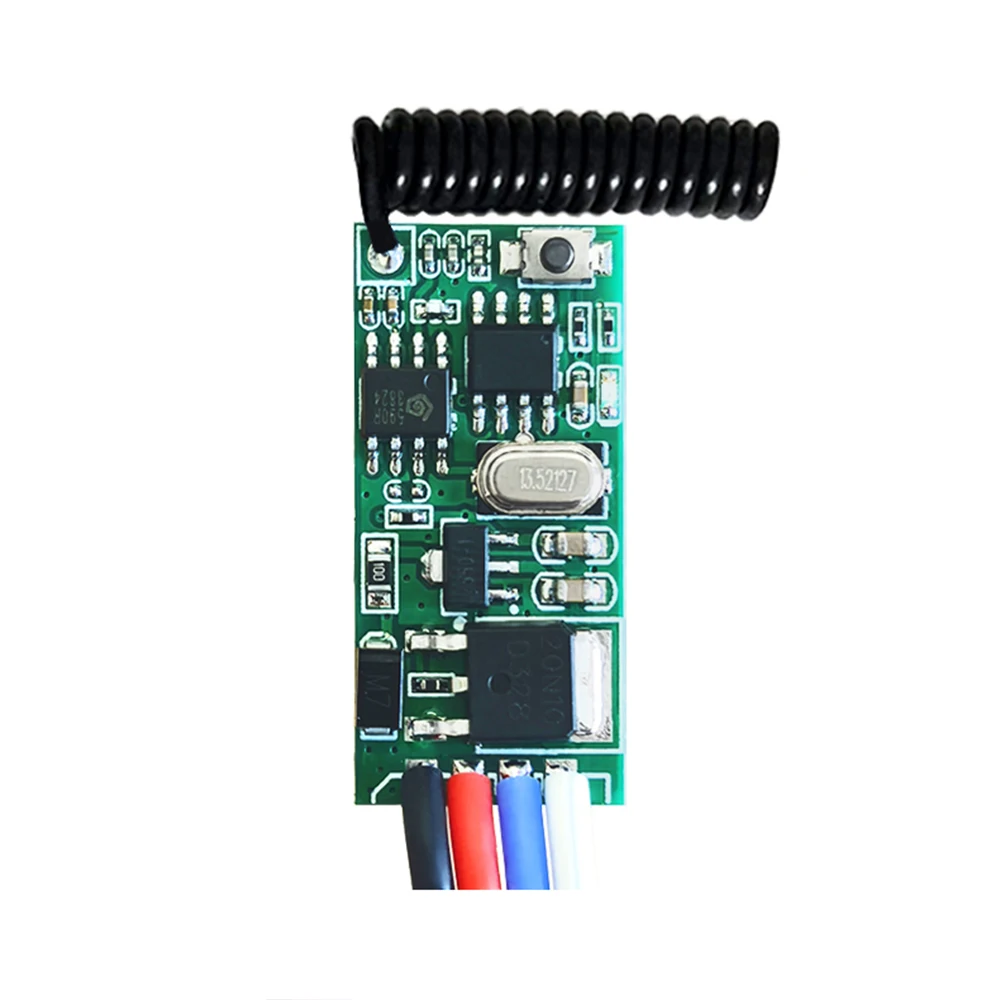

Technical Data Of Receiver Module:
Input Power:DC 3.6~24V
Max current:3 A
RF Frequency: 433Mhz
Working temperature:-30℃~+80℃
RF working mode:superheterodyne
Receive sensitivity: greater than 97dbm
Transmitting distance: more than 50 m ( open space)
Remote storage:10pcs
Support remote type: Learning code 1527code, Fixed code(Rolling code can be design)
Working mode:Momentary, Toggle, Latching
Wiring type:fixed termina

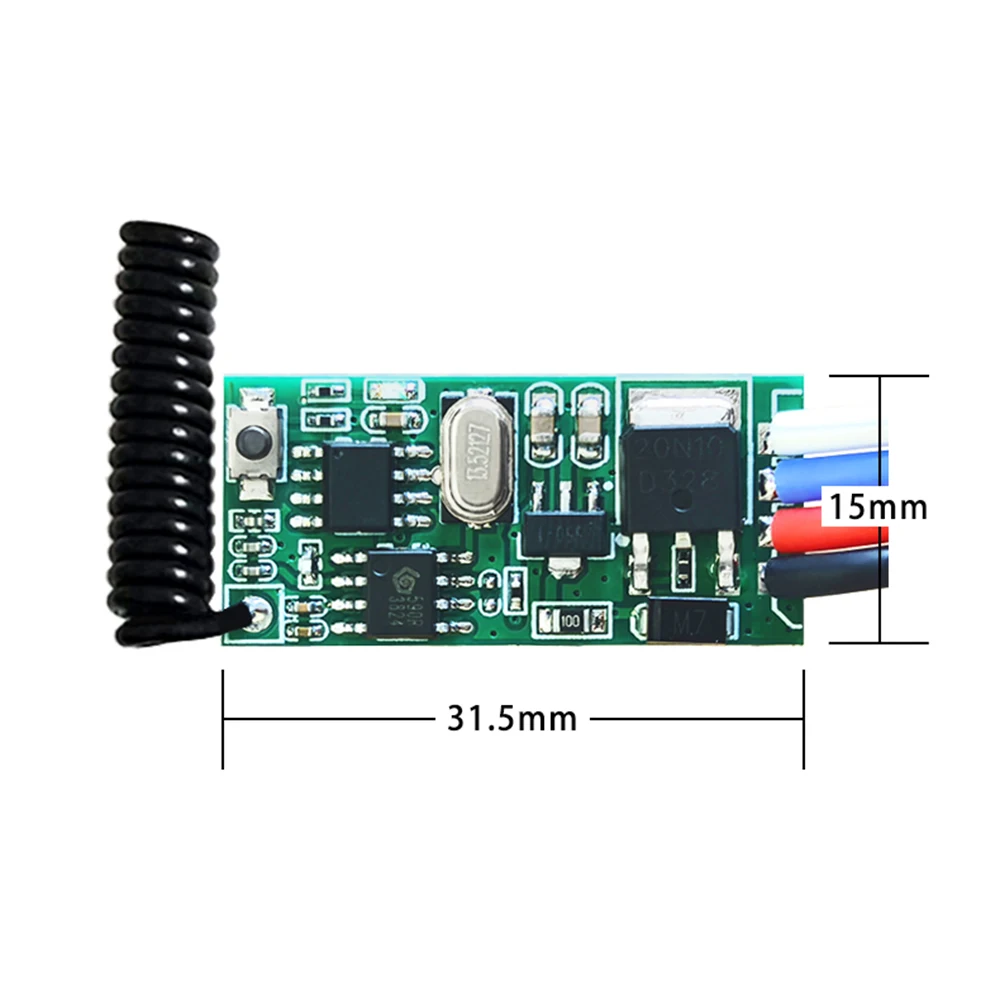

Dimension of PCB: 22.5 x 11 (mm)
Type: White wire / Black wire
color:Black
Material:plastic

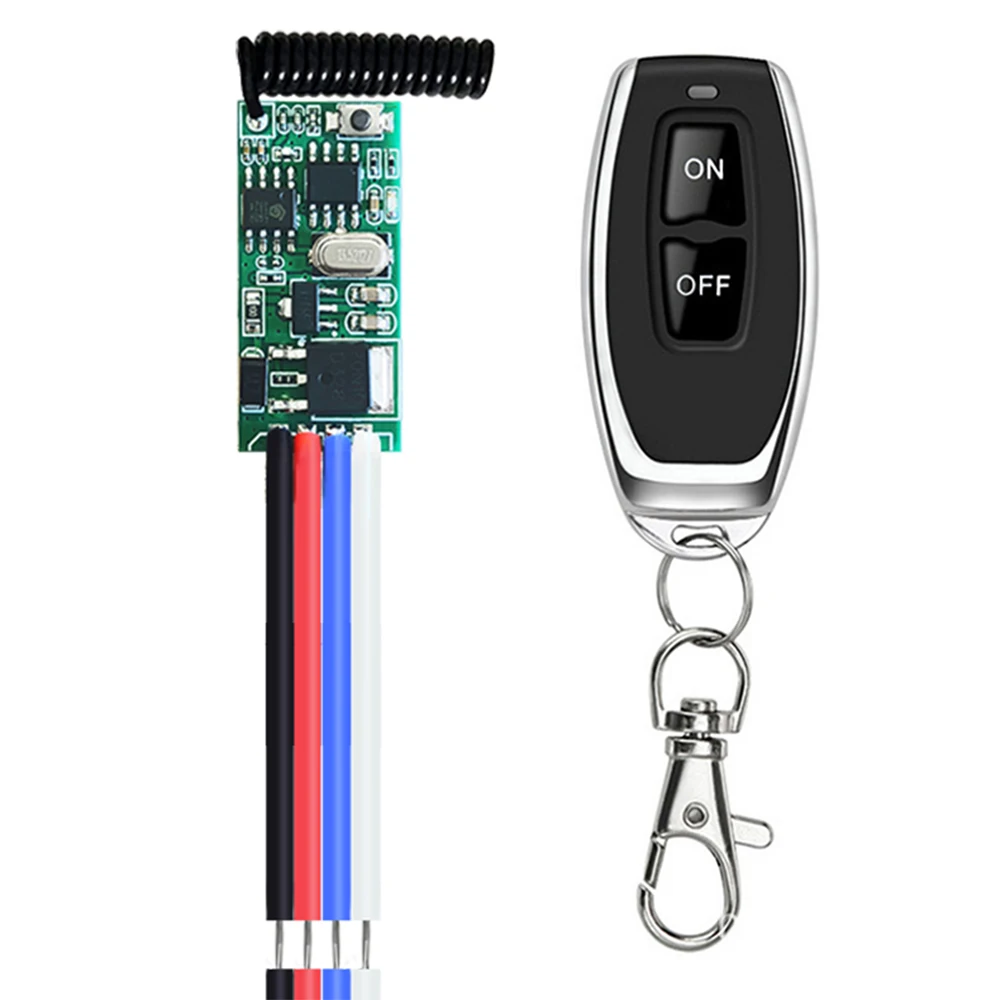

Package Contents:
1 x Receiver
1 x Remote Control
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
